Easy fixation of wall holder in vertical direction by fluting.
Higher load distribution on wall holder for higher loads.
Optimized for 11mm fixings, e.g. for anchoring in concrete.
Serrated, e.g. for FLH AL/ZeLa.
Fördelarna/produktbeskrivning

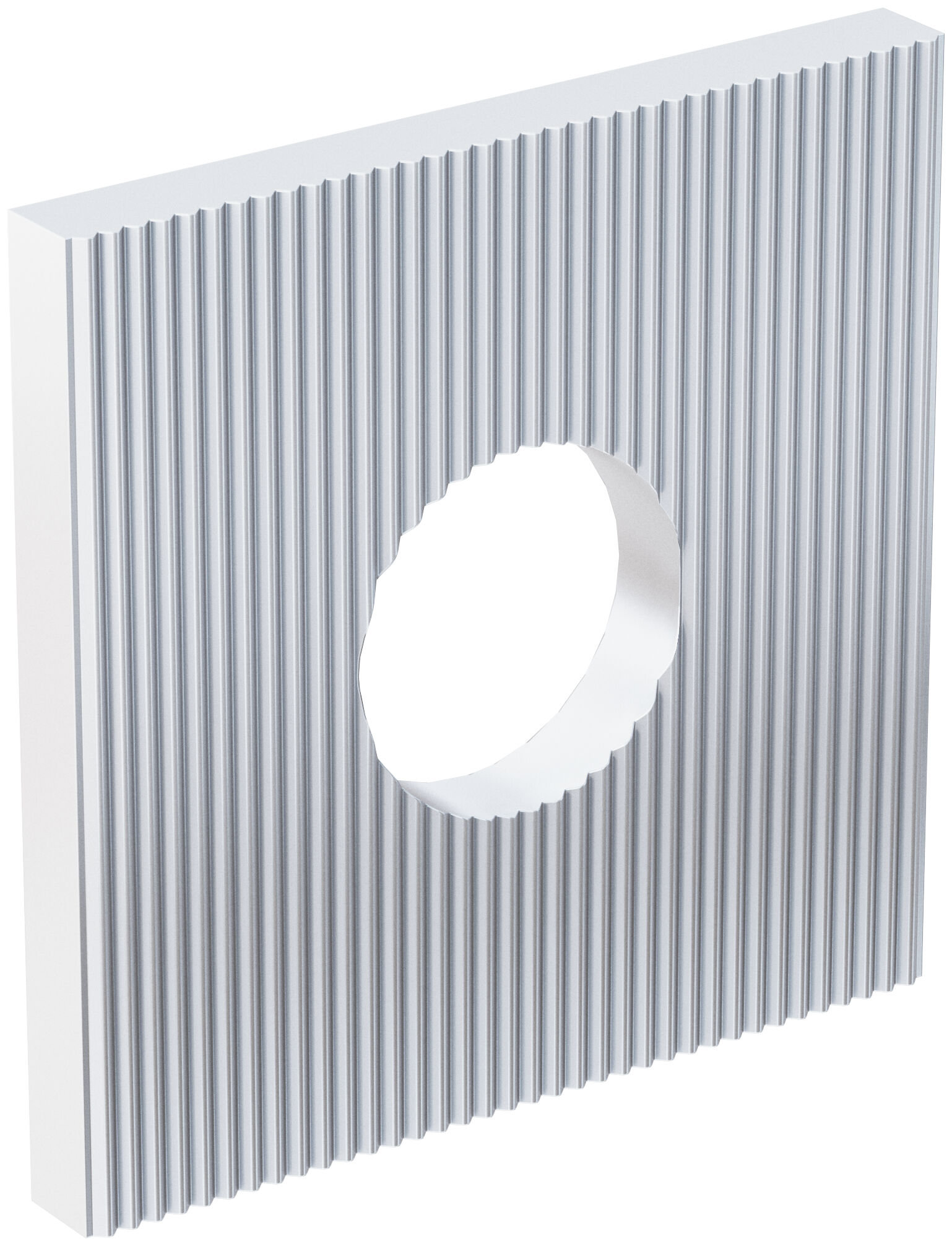

Pressure disk for FLH wall holders.
Advantages
Additional added value for the façade system.
Completes the system.
The L-wall holders of the BWM subframe system ATK 100 made of aluminum are the basis for a façade subframe. The wall holders are fastened to the building substrate using fischer fixings. For a better load distribution these additional pressure plates can be applied.
Ansökan och godkännande
Applications
As accessories for various subframe systems in ventilated rainscreen façades
Godkännanden
DoP: BWM-LE-005
DoP: BWM-LE-006
DoP: BWM-LE-007
DoP: BWM-LE-008
Monteringsinstruktion
Functionality
To offer a full-system, there are optional accessories to complete the system
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: No performance declared
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to EN 1999 or EN 1993, see design specifications and calculations
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: Provided by ordering party
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to specification by the ordering party
