fischer Sound insulated fixed point FSFP 4

Top Features

Prevents unwanted displacement between the pipes and the structures.
The fixed points ageing-resistant insulation elements optimized the sound insulation.

Fixed point clamp with structure-borne sound insulation.

Advantages

The fixed points ageing-resistant insulation element is heat resistant and isolates the structure from sound transfer.
The fully pre-mounted FSFP fixed point ensures a quick and easy installation.
The compact design of the fixed point leads to high pipe loads in all fitting positions.

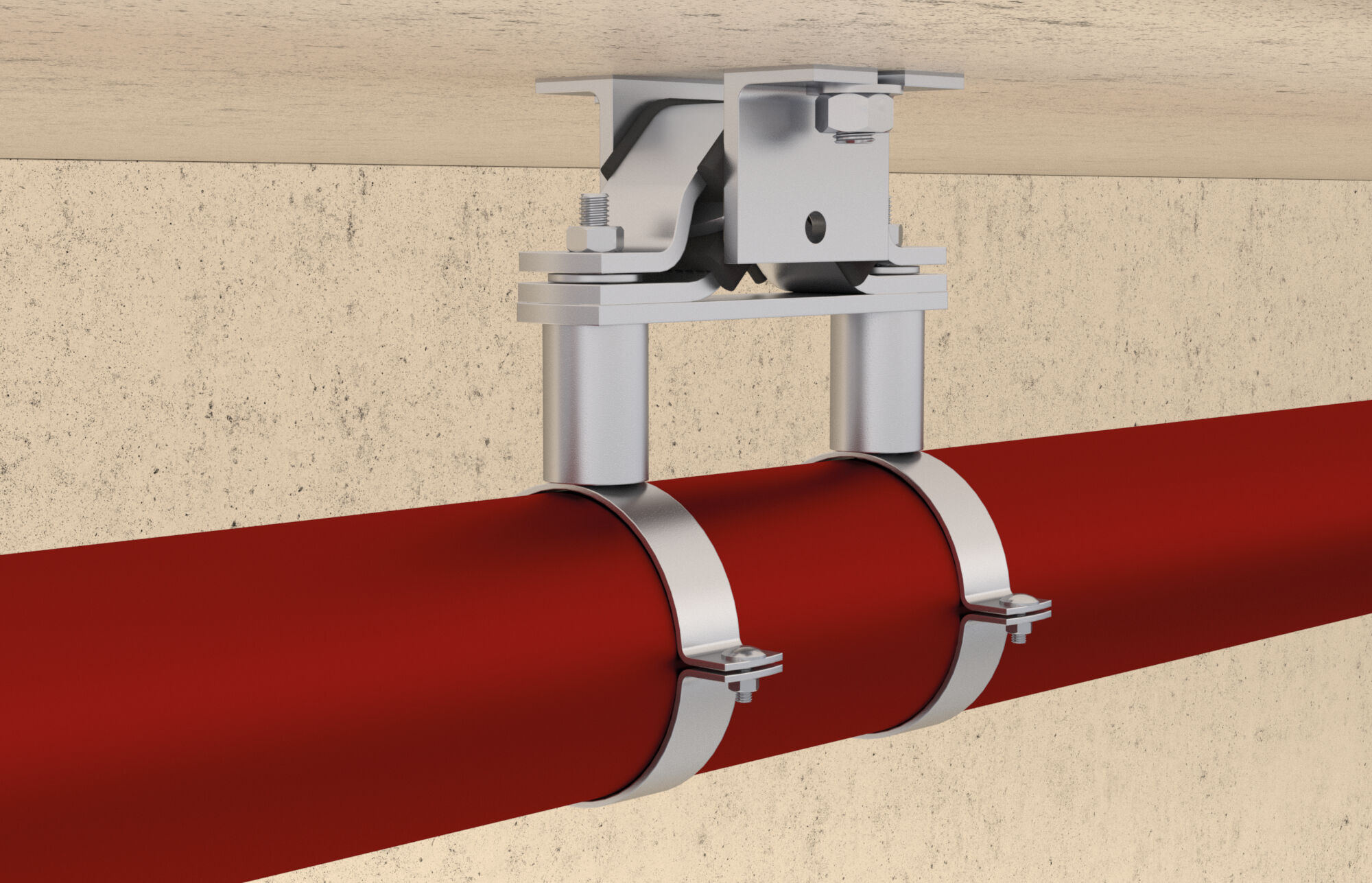

The compact fischer fixed point FSFP with a sound insulation insert is suitable for orienting the thermally induced pipe expansions in the desired direction in the case of heating pipes and refrigeration pipes. The fixed point FSFP with its heat-resistant insulation insert is completely pre-mounted, which means that it is easy to install and saves on costs. The galvanised zinc version is suitable for installation in buildings.

Properties

Clamp strap: StW22 (material no. 1.0032)
Base plate: S235JR (material no. 1.0038)
Zinc plating: electro zinc-plated, min. 5 µm
Elastomer: ISO 1629 SBR/EPDM chlorine-free and silicone-free
Temperature range: -40 °C to +100 °C

Size	4 in
Clamping range( D )	114.3 mm
Locking screw	M8
Width x thickness clamp band( b x s )	30 x 2.5 mm
Amount	1 pcs
GTIN (EAN-Code)	4048962118445
