fischer TermoZ CNplus 8/310

Name: fischer TermoZ CNplus 8/310
Brand: fischer

Product variants

Download of image data

The versatile ETICS hammerset fixing with the option to be screw set.

Advantages

TermoZ CNplus is a hammerset anchor with the option to be screw set. The plug is suitable for all building material and insulation types. Through the flexible use the warehouses and ordering processes are reduced.
With the fast and simple hammerset installation the plugs set too deep can be readjusted with the aid of the screwdriver. This saves working time and helps to avoid fixing marks.
During the screw installation the TermoZ CNplus can be set countersunk or flush. For different set results only one plug is required.
Moreover the screw installation enables an accurate setting due to an optimum application on the insulation surface. Also with soft insulation.
The compound nail ensures a high energy efficiency with the countersunk screw installation, because there is nearly no heat transmission.

The fischer TermoZ CNplus is ideal for securely fixing pressure-resistant insulation up to 340 mm thick, such as polystyrene boards and mineral wool boards. The European Technical Assessment guarantees secure hold and regulates the use in all building material classes and insulation types. The TermoZ CNplus is set with a hammer. Alongside the small drill hole depth, this saves time and money during installation. However, it can also be screwed into the anchoring base. The flexible hammerset is placed exactly flush to the surface or countersunk, depending on the desired application. The TermoZ CNplus can also be adjusted with the screwdriver and removed without problems.

Applications

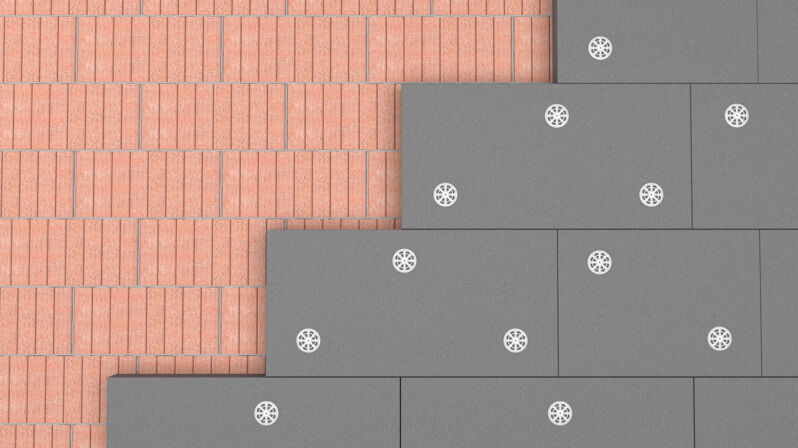

Attachment of ETICS insulating boards on concrete and masonry
Flush installation in ETICS insulating boards, e.g. polystyrene and mineral wool
Countersunk installation in ETICS insulating boards, e.g. polystyrene and mineral wool, incl. a closing cap for covering

Building materials

Building material classes A, B, C, D, E
Concrete
Full blocks made from concrete
Building brick
Solid sand-lime brick
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Lightweight aggregate concrete
Aerated concrete

You can find detailed information on building materials in the registration document.

Approvals

ETA-09/0394
DoP No. 0326
EPD-FIW-20210314-CBD1-EN

Functionality

The plug is set in push-through installation.
Simple, fast setting by driving the compound nail in using a standard hammer.
The setting process with the screwdriver is performed flush with a standard Bit T 25.
For countersunk installation the setting tool CNplus is required. The insulation disk is covered with a closing cap.
Non-load bearing layers, such as adhesive and old plaster, are included in the maximum useful length.

Mounting Strip 1 Picture

1 / 4

Mounting Strip 2 Picture

1 / 4

Mounting Strip 3 Picture

1 / 5

Mounting Strip 4 Picture

1 / 4

ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	310 mm
Effect. anchorage depth ( h_ef )	35 mm
Max. usable length at surface-flush installation ( t_fix )	270 mm
Min. total drill whole depth incl. insulation at surface flush installation ( h )	315 mm
Max. usable length at countersunk installation ( t_fix )	270 mm
Min. total drill whole depth incl. insulation at countersunk installation ( h )	330 mm
Drive	TX25
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4048962278590

ETA Certification Document

pdf, ETA-09/0394

European Technical Assessment for fischer TermoZ CN 8 / fischer TermoZ CN 8 R / fischer TermoZ CNplus 8 - Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Created on 10/18/2022

DOP - Declaration of Performance

pdf, DoP No. 0326

Declaration of Performance for fischer termoz CN 8 / fischer termoz CN 8 R / termoz CNplus 8 R (Plastic anchors for use in concrete and masonry)

Created on 10/31/2022
