Carbon Fibre Laminates for versatile structural strengthening.

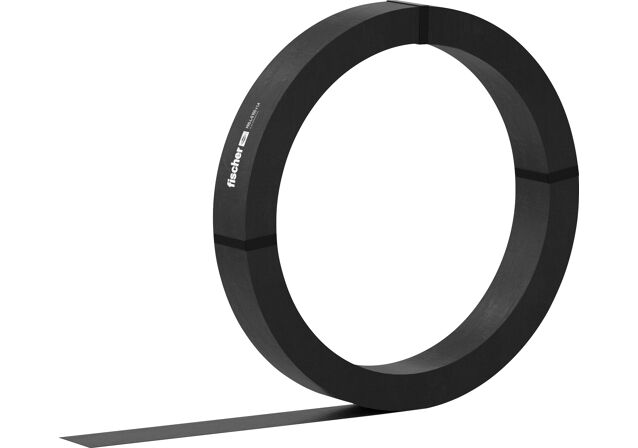

Externally bonded CFRP Laminates FRS-L-S, FRS-L-H

Externally bonded Carbon Fibre Reinforced Polymer (CFRP) Laminates for structural strengthening with standard (≥ 170 GPa) or high (≥ 200 GPa) tensile elastic modulus.

Product variants

Download of image data

Product variants

12 Product variant (s)

Density

Mean fibre volume content

Width

Thickness

Area

Recommended consumption

Viewed 12 of 12 variant (s)

Advantages

Two variants: Standard (≥ 170 GPa) or high ( ≥200 GPa) tensile elastic modulus
Easy installation due to light weight
Crack width limitation
Strengthening without significantly increasing the dead-load of existing structures, minimal reduction of the interior height
Very good alkaline and corrosion resistance
Different geometries for cost-efficient design and flexibility

Certificates

Product component of the fischer C-Fiber Force strengthening system with ETA (ETA-24/0281) and ICC-ES Evaluation Report (ESR-4774)

Applications

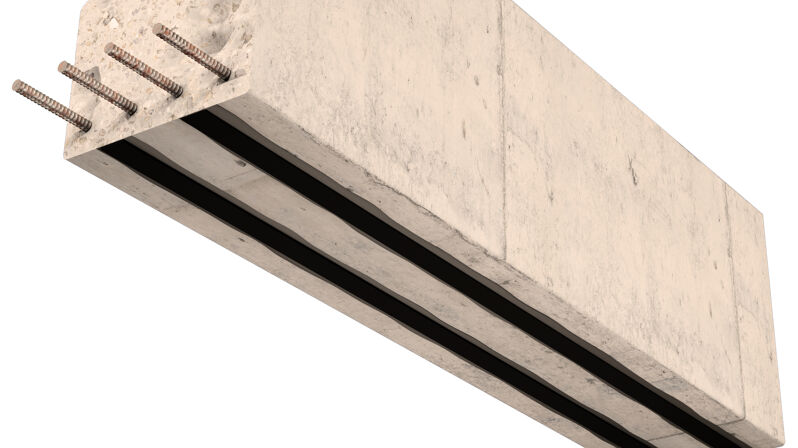

Structural Strengthening of reinforced concrete and pre-stressed concrete members
Enhancing the tensile reinforcement area of existing concrete members
Buildings, infrastructure and park decks

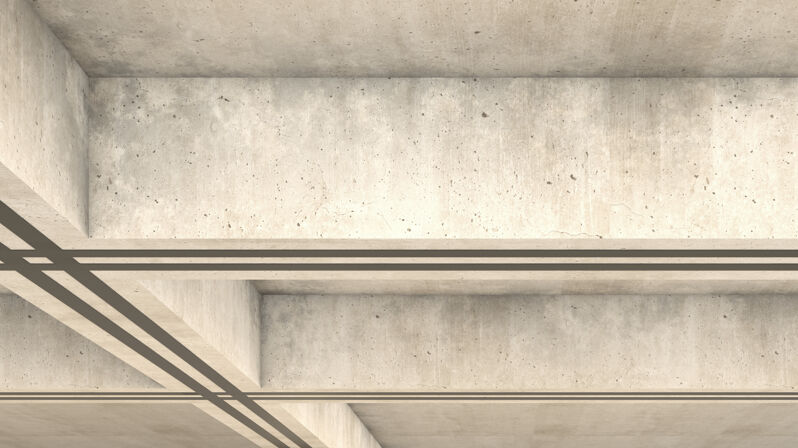

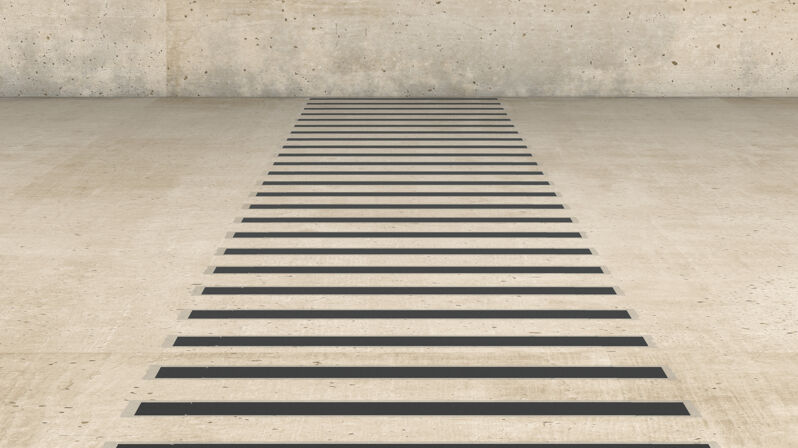

Beams, concrete slabs, walls

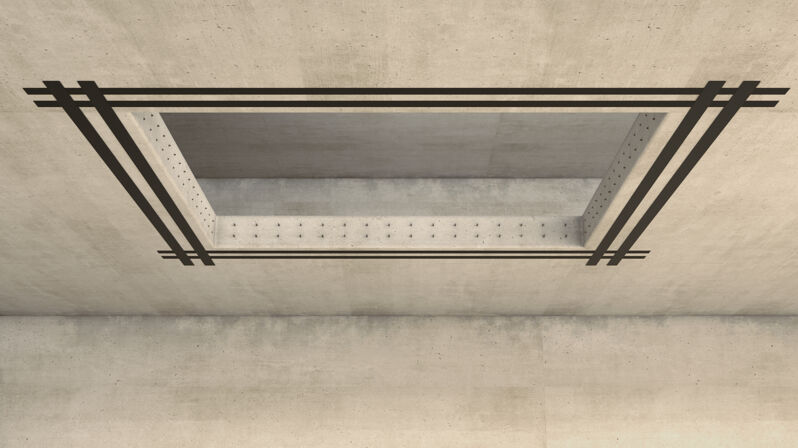

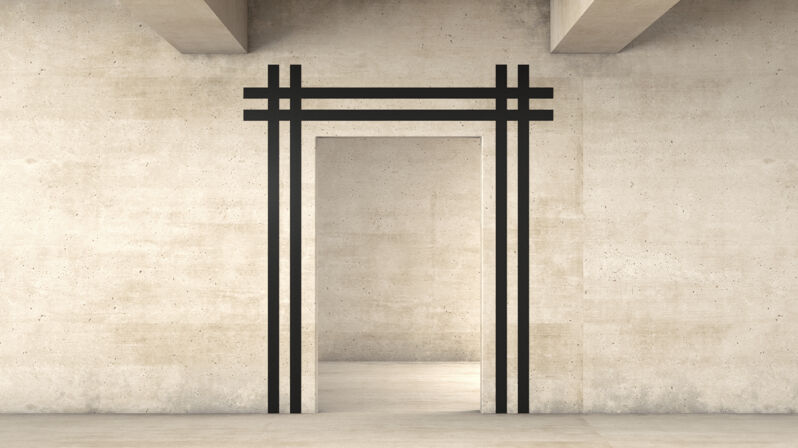

Wall and ceiling openings

Building materials

Approved for:

Concrete

Applicable for:

Masonry
Steel
Timber

You can find detailed information on building materials in the registration document.

Approvals

ETA-24/0281
ESR-4774

Density	1.60 g/cm³
Mean fibre volume content	67 %
Width ( B )	50 mm
Thickness	1,2 mm
Area	60 mm²
Recommended consumption	0.3 - 0.4 kg/m²
Mean tensile strength	3.400 N/mm²
Mean Elastic Modulus (compression)	200.000 N/mm²
Mean ultimate tensile strain	1,6 %
Amount	1 pcs
GTIN (EAN-Code)	4048962487855

Density	1.60 g/cm³
Mean fibre volume content	67 %
Width ( B )	50 mm
Thickness	1,2 mm
Area	60 mm²
Recommended consumption	0.3 - 0.4 kg/m²
Mean tensile strength	3.000 N/mm²
Mean Elastic Modulus (compression)	170.000 N/mm²
Mean ultimate tensile strain	1,7 %
Amount	1 pcs
GTIN (EAN-Code)	4048962487732

Density	1.60 g/cm³
Mean fibre volume content	67 %
Width ( B )	75 mm
Thickness	1,2 mm
Area	90 mm²
Recommended consumption	0.4 - 0.5 kg/m²
Mean tensile strength	3.000 N/mm²
Mean Elastic Modulus (compression)	170.000 N/mm²
Mean ultimate tensile strain	1,7 %
Amount	1 pcs
GTIN (EAN-Code)	4048962487831

Density	1.60 g/cm³
Mean fibre volume content	67 %
Width ( B )	75 mm
Thickness	1,2 mm
Area	90 mm²
Recommended consumption	0.4 - 0.5 kg/m²
Mean tensile strength	3.400 N/mm²
Mean Elastic Modulus (compression)	200.000 N/mm²
Mean ultimate tensile strain	1,6 %
Amount	1 pcs
GTIN (EAN-Code)	4048962487862

Density	1.60 g/cm³
Mean fibre volume content	67 %
Width ( B )	100 mm
Thickness	1,2 mm
Area	120 mm²
Recommended consumption	0.6 - 0.7 kg/m²
Mean tensile strength	3.400 N/mm²
Mean Elastic Modulus (compression)	200.000 N/mm²
Mean ultimate tensile strain	1,6 %
Amount	1 pcs
GTIN (EAN-Code)	4048962487879
