fischer Remedial wall tie VBS 8/150

Name: fischer Remedial wall tie VBS 8/150
Brand: fischer

Product variants

Download of image data

Top Features

No spallings and cracks. For this reason, VBS 8 can be used even in old masonry.
Cost-effective fixing due to the small drill bit diameter of just 8 mm.
High safety: Assembly is possible in the whole of the bed joint.
Invisible attachment due to the grey colour of the injection mortar.
Building Authority approval.

The professional remedial wall tie improvement for double shell masonry.

Advantages

The expansion-force-free fixing prevents splitting and cracks. This means that VBS 8 can be used even in old and sensitive masonry.
The drill bit diameter of just 8 mm means that a minimal amount of mortar is required for each fixing point. Thus VBS 8 is particularly economical.
Special drills allow for precise drilling holes without breaking the edges in perforated bricks. This way, the widening of the drill hole in the facing brick can be avoided.
The installation is approved anywhere along the entire bed joint, thus ensuring a high level of installation safety.
The grey colour of the injection mortar is similar to the colour of the bed joint. This means that the fixing is almost invisible to the eye.

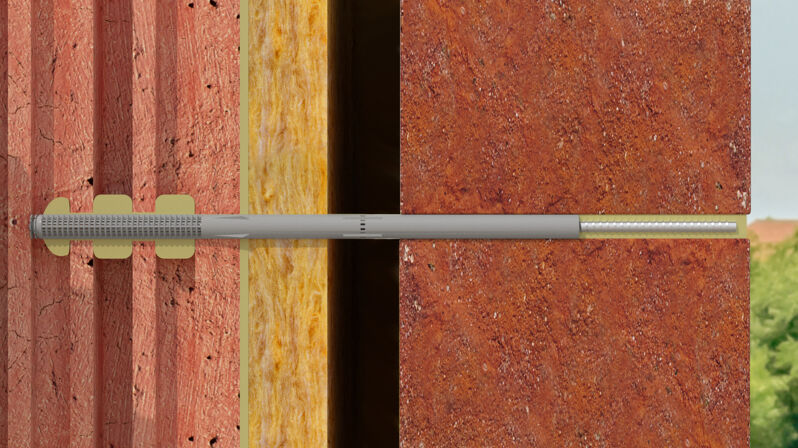

The fischer remedial wall tie VBS 8 is an approved system for building renovation, designed for retrospective fixing of facing masonry both with and without an air layer. The fischer high-performance mortar FIS V Plus, a plastic anchor sleeve and a profiled, stainless steel wire are system components. The VBS 8 is inserted in the bed joint of the outer leaf using push-through installation. The anchor sleeve is inserted into the drill hole. Afterwards the mortar is injected, which anchors the 4 mm wire anchor without expansion pressure in the facing formwork and the supporting formwork.

Functionality

The remedial wall tie VBS 8 comprises a perforated plastic sleeve and a profiled stainless steel tie ø 4 mm.
VBS 8 is used together with the injection mortar FIS V and FIS V Plus.
The anchor is inserted in the bed joint of the outer leaf using push-through installation.
Approx. 2-3 scale units (4-6 ml) are required to close the facing brick shell.

Mounting Strip 1 Picture

1 / 12

DIBt-approval
Outer leaf( h_M )	90 / 115 mm
Cavity or insulation( h_L )	145 - 175 / 120 - 150 mm
Drill diameter( d₀ )	8 mm
Drilling depth = embedment depth( t )	325 mm
Wire length( l_d )	318 mm
Sleeve length( l_s )	280 mm
Fill quantity FIS V Plus bearing wall	6 scale units
Fill quantity outer leaf	2-3 scale units
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4006209788028
