fischer Wash basin fixing WST II 10 x 140

Name: fischer Wash basin fixing WST II 10 x 140
Brand: fischer

Product variants

Download of image data

Top Features

Collar nut enables the prefixing of the wash basin.
DuoPower for the use in solid and hollow building materials.
Stud screw with integrated TX for an easy installation.
12 mm diameter for reduced drilling time.

Complete fixing set for wash basins

Advantages

Complete fixing set ensures a fast and easy installation.
The new collar nut enabels the prefixing of the wash basin and is therefore suitable for an easy one man installation.
The white collar nut fitts to all established ceramics and offers therefore an optical attractive fixing solution.
The usage of the DuoPower allows a wide range of applications with one plug.
The usage of a diameter 12 plug reduces the drilling depth and safes time.
The stud screw with integrated torx simplifies the installation and provides a comfortable installation.

The fischer fixing set WST II contains all elements required for the fast and easy fixing of wash basins to the wall: Two fischer DuoPower 12 made from high-quality nylon, two zinc-plated stud screws, two zinc-plated hexagonal nuts and two flush sleeves. With the fischer DuoPower, the set can be mounted in solid and hollow building materials. The collar nut enables the prefixing of the wash basin for a comfortable installation.

Applications

Wash basins

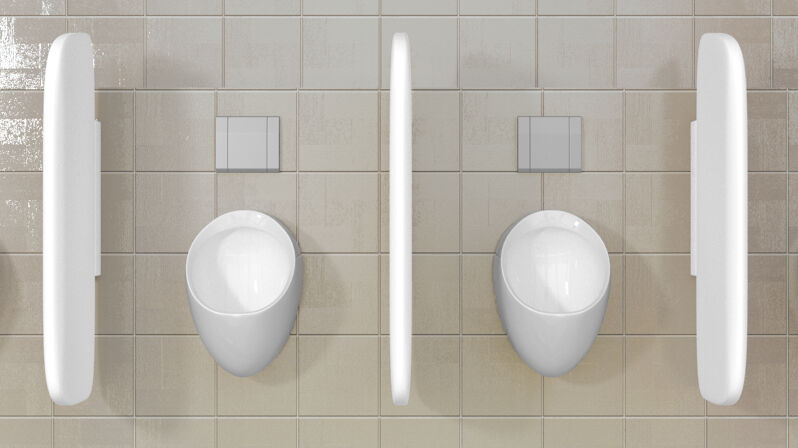

Urinals
Buiot-in toilets
Cisterns

Building materials

Suitable for:

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Aerated concrete
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the registration document.

Functionality

The enclosed DuoPower made of two materials, expands, folds or knots depending on the building material and ensures thereby always the optimum product function.
The stud screw can be installed with the inner torx in the head of the screw. This enables a fast and easy installation without the need of an additional tool.

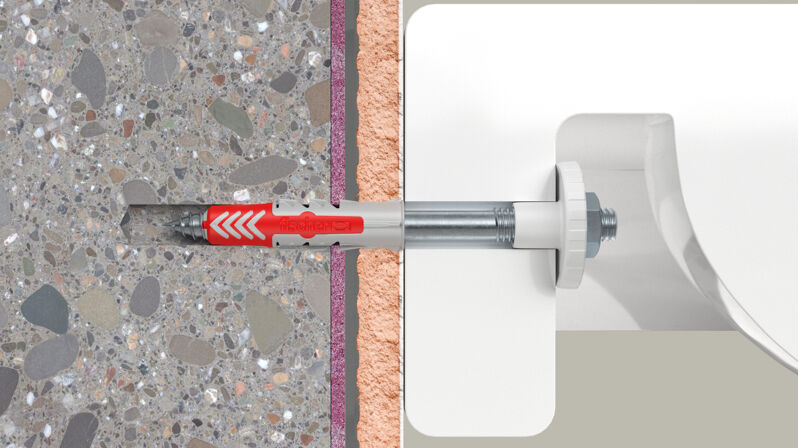

By turning on the white collar nut the wash basin is already prefixed and remains in his position. In the next step the metall nut is turned on the stud screw for the final installation of the wash basin.
Maximum load-bearing capacity is achieved only if the minimum screw-in depth is reached.
Tiles and plaster are not classed as load-bearing base materials.

Mounting Strip 1 Picture

1 / 5

Drill diameter ( d₀ )	14 mm
Min. drill hole depth ( h₁ )	100 mm
Anchor length ( l )	75 mm
Screw dimension ( d_s x l_s )	10.0x140 mm

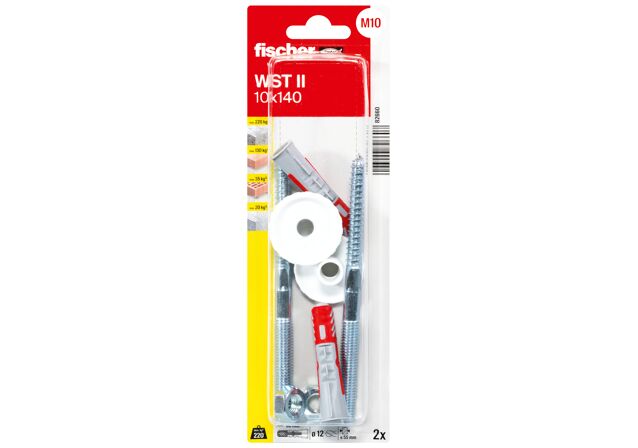

Contents	2 x Universal plug DuoPower 12 x 60 2 x Stud screw M10 x 140 zinc-plated 2 x Collar nut M10 2 x Hexagon nut M10 zinc-plated

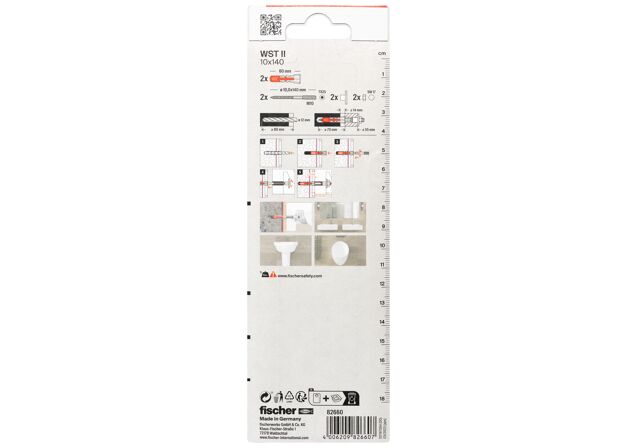

Packaging	Blister card
Amount	2 pcs
GTIN (EAN-Code)	4006209826607
