Art.-No. 557728

GTIN (EAN-Code): 4048962402728

fischer DuoSeal 8 x 48 S PH TX A2

Name: fischer DuoSeal 8 x 48 S PH TX A2
Brand: fischer

Product variants

Download of image data

Top Features

Perfect sealing of the drill hole without any sealing compound.
Watertightness approved according to ETAG 022 and DIN 18534 up to water exposure class W3-I. In any case, please take note of the general national regulations on the use of plugs in wet areas.
Quick and easy assembly by simply hammering in the plug.
Suitable for all building materials.
High load values due to the 2-component material.

The sealing plug for wet areas.

Advantages

The DuoSeal completely seals drill holes in tiles without additional sealing compound and thus prevents structural damage caused by moisture in the building material.
The DuoSeal is ideally suited for tiled surfaces which are exposed to very frequent splashing water and temporarily accumulated water.
The universal plug can be installed gently on tiles with very little effort.
It´s red component ensures a secure hold in all building materials. Thus, the DuoSeal achieves the same load values as conventional nylon plugs.
The stainless steel screw included in the set is ideally suited for installation in wet areas and avoids rusting.
The soft plastic rim closes the drill hole completely and flexibly adapts to the shape of the attachment part.

The fischer DuoSeal is a 2-component plug which seals the drill hole in wet areas without any additional sealing compound. The nylon plug with the enclosed screw has been independently tested by the Testing and Certification Institute of the Säure Fliesner Vereinigung e. V. The watertightness is confirmed in accordance with ETAG 022 and DIN 18534 up to the water exposure class W3-I. Taking into account the national and international sealing standards for wet areas, the DuoSeal in combination with the enclosed screw is suitable for applications in commercial, private and public wet areas which are frequently exposed to splash water and temporarily accumulated water. In any case, please take note of the general national regulations on the use of plugs in wet areas.

Applications

In tiled non-permanent wet areas like:

Bathrooms
Kitchens
Spas
Swimming pool surroundings
Sports facilities
Laundry rooms

Suitable for:

Accessories
Faucets
Shower panels
Mirrors
Shelves
Hair dryer holders
Kitchen accessories
Tubes

Building materials

Concrete
Solid brick
Solid sand-lime brick
Light concrete (solid brick)
Light concrete (hollow brick)
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete
Gypsum plasterboard
Gypsum fibreboard
Chipboard
Gypsum block

You can find detailed information on building materials in the registration document.

Approvals

91022001.001 e

Functionality

The DuoSeal is only suitable for application on tiles and can only be mounted as pre-position installation. A suitable diamond or tile drill should be used for drilling the hole.
The DuoSeal can be installed gently on tiles with just a few hammer blows. The rim of the shaft prevents the plug from being set too deep and additionally seals the drill hole.
The red component made of high-quality nylon automatically activates the optimum function principle (spreading, folding, knotting) depending on the building material for best hold.
The soft grey component is pressed against the drill hole wall by screwing in the screw and seals the drill hole completely.
The grooves in the plug shaft compensate for unevenness in the hole, so that the sealing function is guaranteed even if the drill hole is not perfect.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 5

Mounting Strip 3 Picture

1 / 6

Drill diameter ( d₀ )	8 mm
Drill hole diameter tolerance	8.0 - 8.45 mm
Min. building material thickness ( h_min )	25 mm
Anchor length ( l )	48 mm
Screw dimension ( d_s x l_s )	6.0 x 70 mm
Drive	TX30
Sealing depth ( t_v )	5 - 14 mm
Tile thickness ( t_F )	5 - 10 mm
Max. fixture thickness ( t_fix )	16 mm

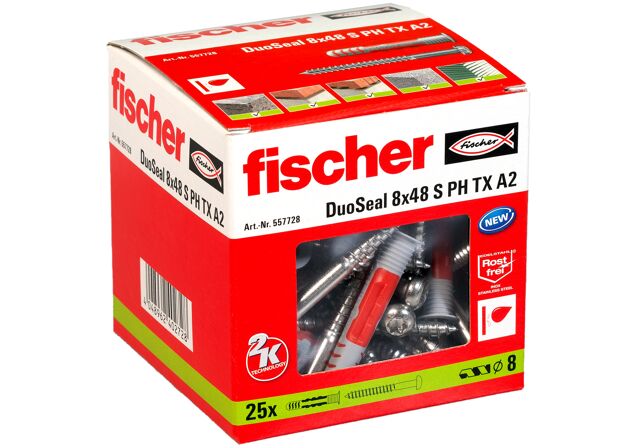

Contents	25 x DuoSeal 8 x 48 25 x Pan head sealing screw 6.0 x 70 A2
Packaging	Folding box
Amount	25 pcs
GTIN (EAN-Code)	4048962402728
