4 x Universal plug FU 10 x 60 4 x Chipboard screw 6.0 x 80
Drill diameter (
d0
)
10 mm
Anchor length (
l
)
60 mm
Min. drill hole depth
—
Wood and chipboard screws (
ds
)
6.0 x 80 mm
Min. panel thickness (
dp
)
12,5 mm
Contents
4 x Universal plug FU 10 x 60 4 x Chipboard screw 6.0 x 80
Amount
4 pcs
Packaging
Blister card
GTIN (EAN-Code)
8590369843285
Viewed 11 of 11 variant (s)
The advantages / Product description
Advantages
The universal design guarantees a safe installation in almost all building materials. This provides a high variety of applications.
The anti-rotattion ligs prevent the plug rotation in the drill hole for an easy installation.
The collar prevents the plug slipping into the drill hole for a syve installation.
The FU universal plug can be used with wool and chipboard screws from 3 to 6 mm. This provides a high variety of screws.
Application and approval
Applications
Shelves
Curtain rails
Skirting
Electrical installations
Mounting rails
Mirrors
Building materials
Concrete
Vertically perforated brick
Hollow block
You can find detailed information on building materials in the registration document.
Assembly instruction
Functionality

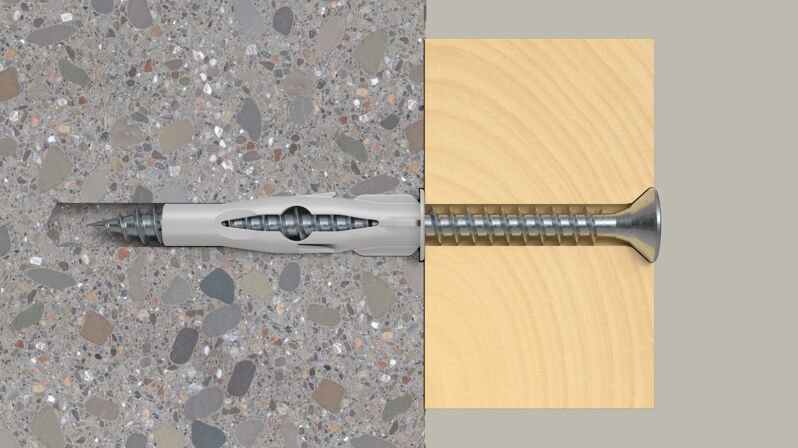

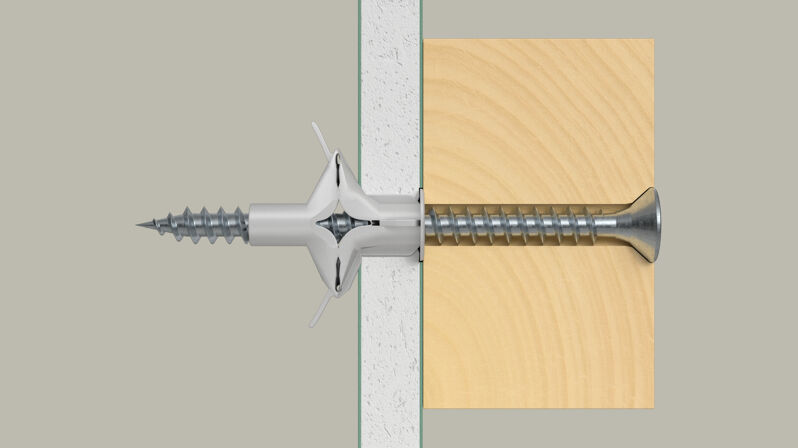

The geometry of the fixing achieves anchorage by friction grip (expansion) in solid building materials and positive form-locking in perforated bricks or cavity walls.
