The vertical profiles allow multifunctional use for direct fixings, as a spacer substructure or as a base construction.
The geometry of the vertical profile enables optimised load transfer.
The combination of wall holder and vertical profile ensures optimum compensation of tolerances in the building substrate.
The various available geometries are specially adapted to the individual application.
The surfaces are available in uncoated or black.

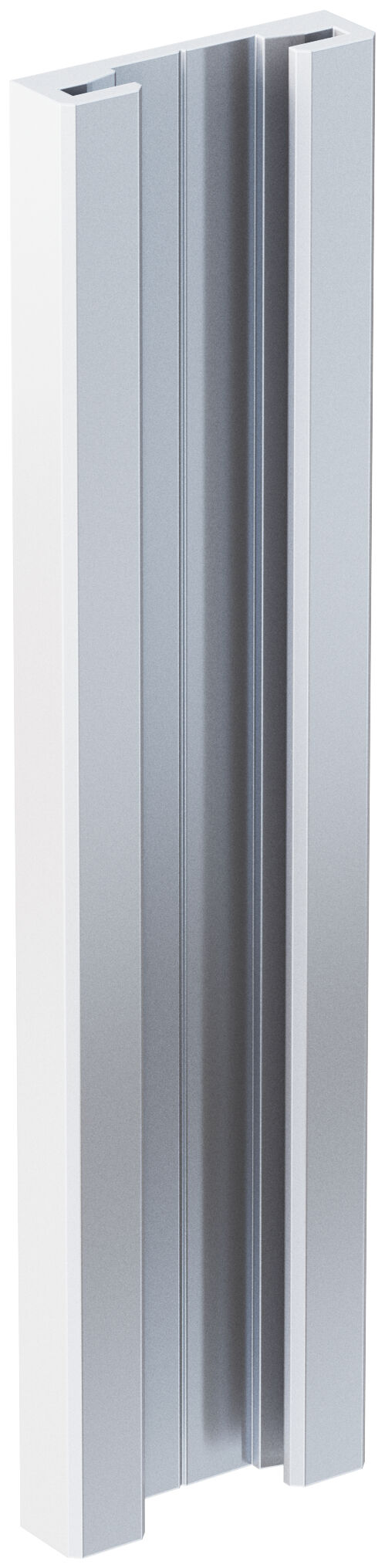

The embrasure profile of the BWM clamp system ATK 102 is used for vertical embrasures. Furthermore, it can also be used horizontally or in fitting pieces in difficult places. The profiles are available in 6 m lengths as standard.
Properties
Aluminum (e.g. EN AW 6063, 6061)
Application and approval
Applications
As a vertical profile for subframe systems in ventilated rainscreen facades
Approvals
DoP: BWM-LE-005
DoP: BWM-LE-006
DoP: BWM-LE-007
DoP: BWM-LE-008
Assembly instruction
Functionality
Vertical load transfer of the impacting loads and transfer to the wall holders
Compensation of structural tolerances together with the wall holders
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: No performance declared
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to EN 1999 or EN 1993, see design specifications and calculations
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: Provided by ordering party
Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to specification by the ordering party
